Accumulation Systems for Bottles and Containers

Main function

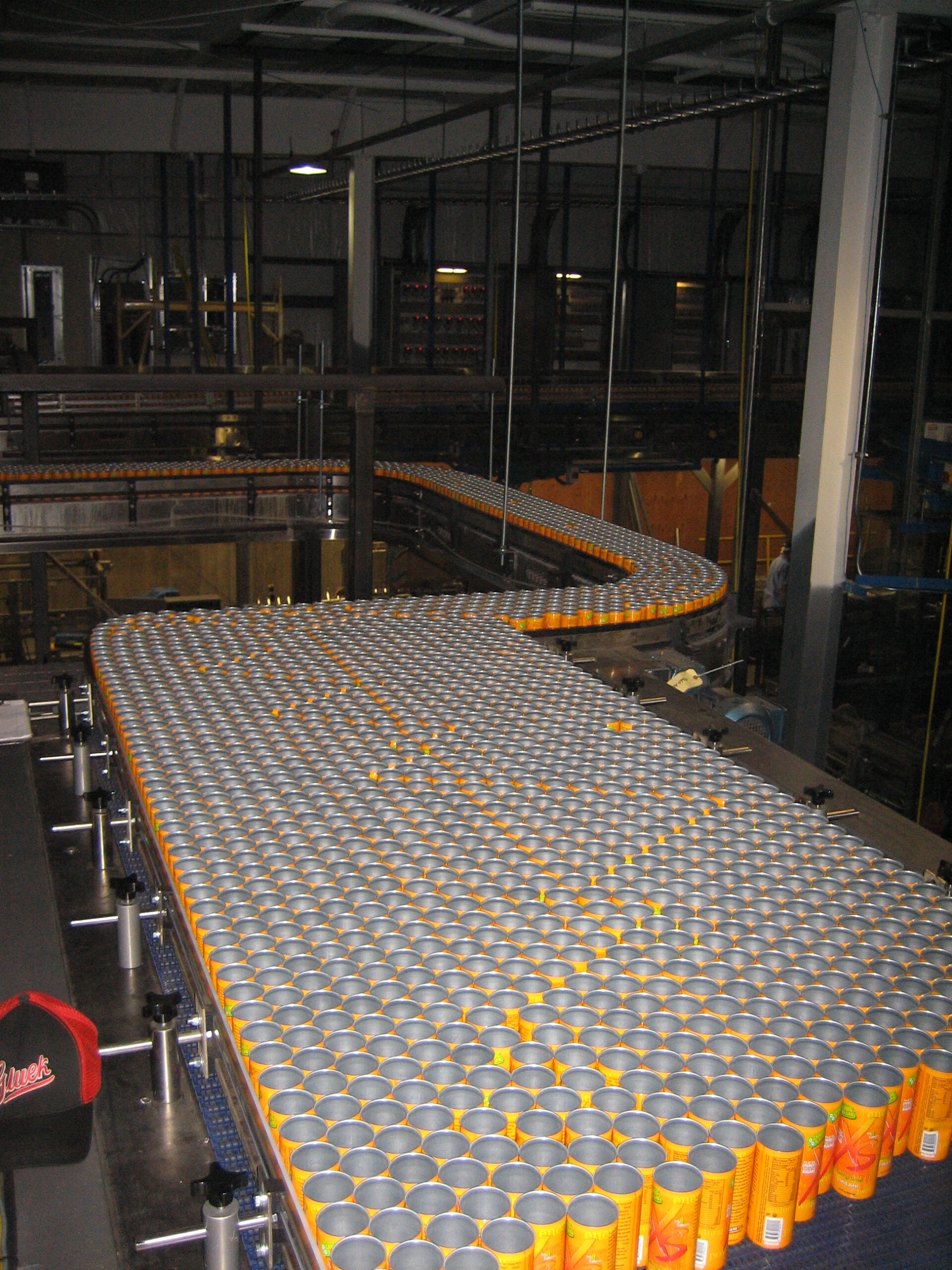

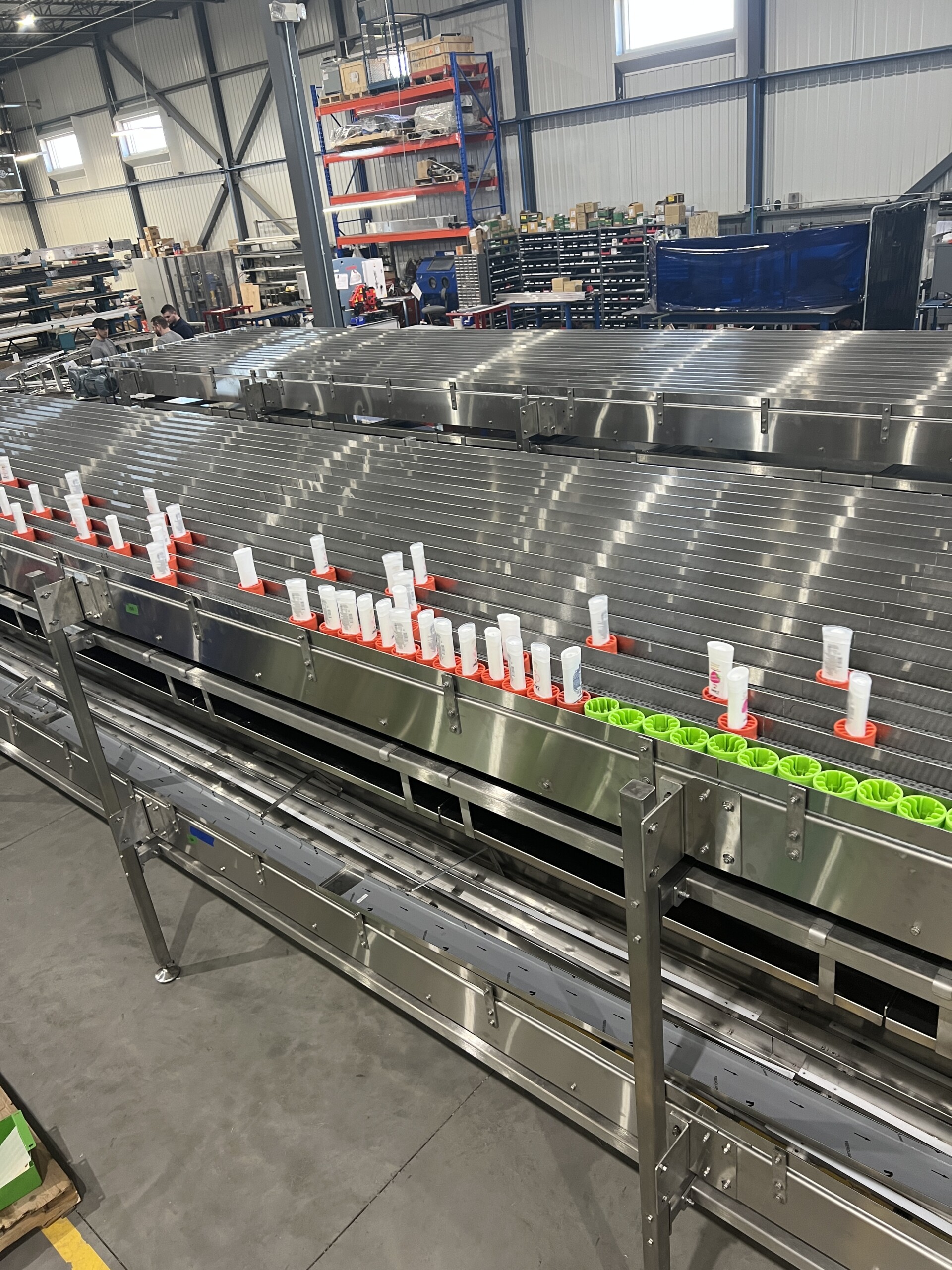

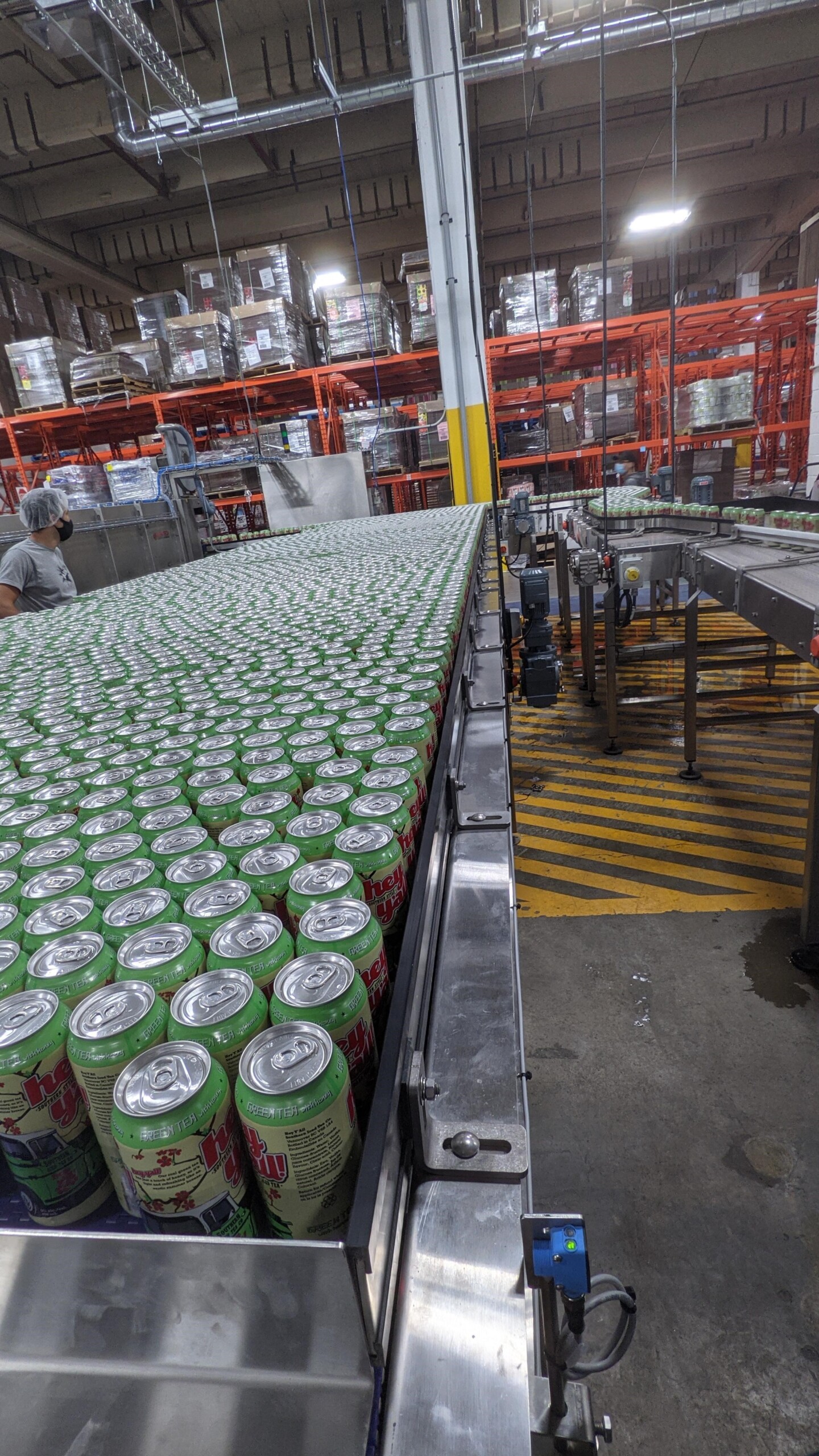

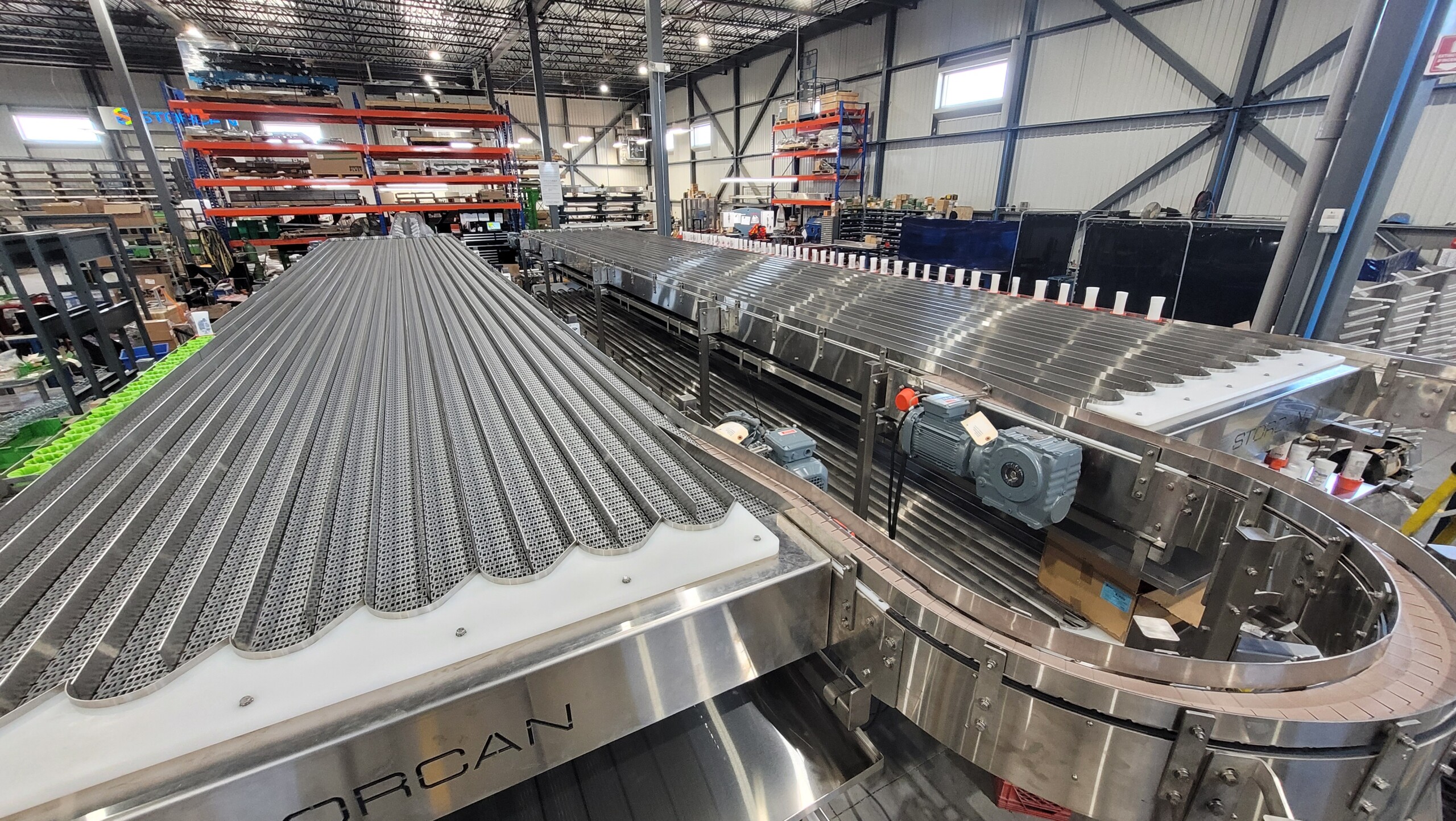

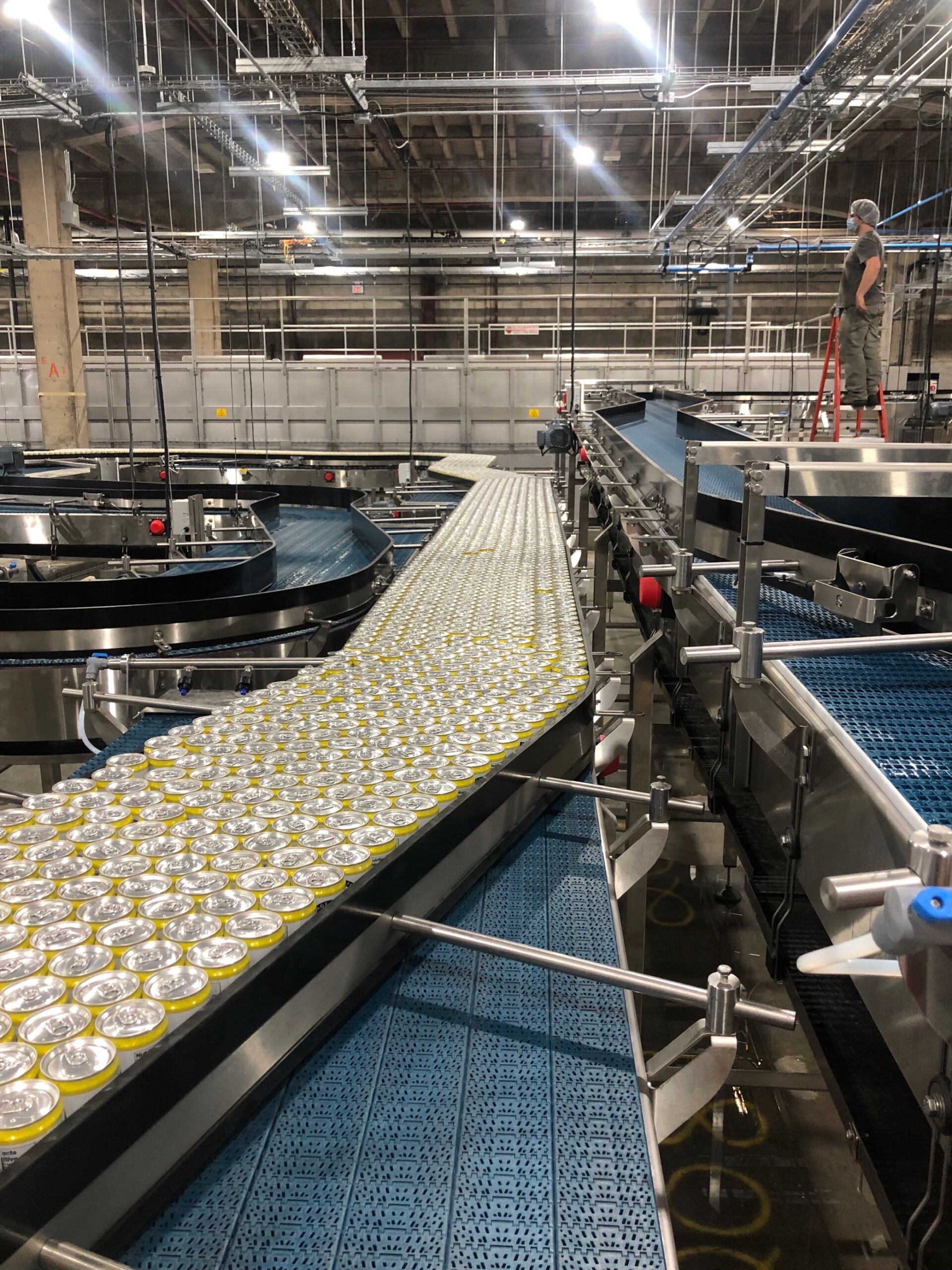

Accumulation systems for bottles and containers are conveyor modules designed to create a buffer zone between different production machines in order to maintain continuous product flow despite speed variations or temporary downstream stoppages.

They absorb production fluctuations, reduce line downtime, and ensure a stable supply to packaging or processing equipment. Accumulation tables therefore play a key role in optimizing overall line performance.

Typical applications

· FIFO accumulation (First In First Out): Products move forward in the order they enter and exit in the same order. Recommended when traceability or product sequence is critical.

· LIFO accumulation (Last In First Out): Products accumulated upstream of a bottleneck are released in reverse order. A compact solution when product order is not a priority.

· Recirculating accumulation: Products circulate in a loop until the downstream machine becomes available. This allows high buffer capacity without stopping the upstream line.

Key benefits

· Production flow optimization: Reduced line stoppages and improved process stability
· Absorption of speed variations: Buffer function between production equipment
· Gentle container handling: Reduced risk of falls and blockages
· Flexible design: Tables sized according to product, throughput, and layout requirements
· Improved overall line performance: Maintains production even during downstream interruptions
· Reduced operator intervention: Eliminates dead plate zones

Technical specifications

  • Frame 304 stainless steel structure with H-type tubular supports, suitable for industrial or sanitary environments
  • Belt Modular Mat Top belt designed for smooth, low-pressure accumulation
  • Drive System Gear motors (SEW Eurodrive, Keltech or equivalent) with variable speed control
  • Components Side guides adapted to product format, accumulation modules (FIFO, LIFO, recirculation), flow control systems
  • Available Options Intelligent accumulation control, variable speed, multi-lane configurations, full line integration, custom design

Solutions tailored to your operations

Benefit from Storcan’s expertise to design a high-performance, scalable production line.
