Can Rinser with Inverter

Main function

The can rinser with inverter is an integrated rinsing system designed to ensure the internal cleanliness of containers prior to filling.

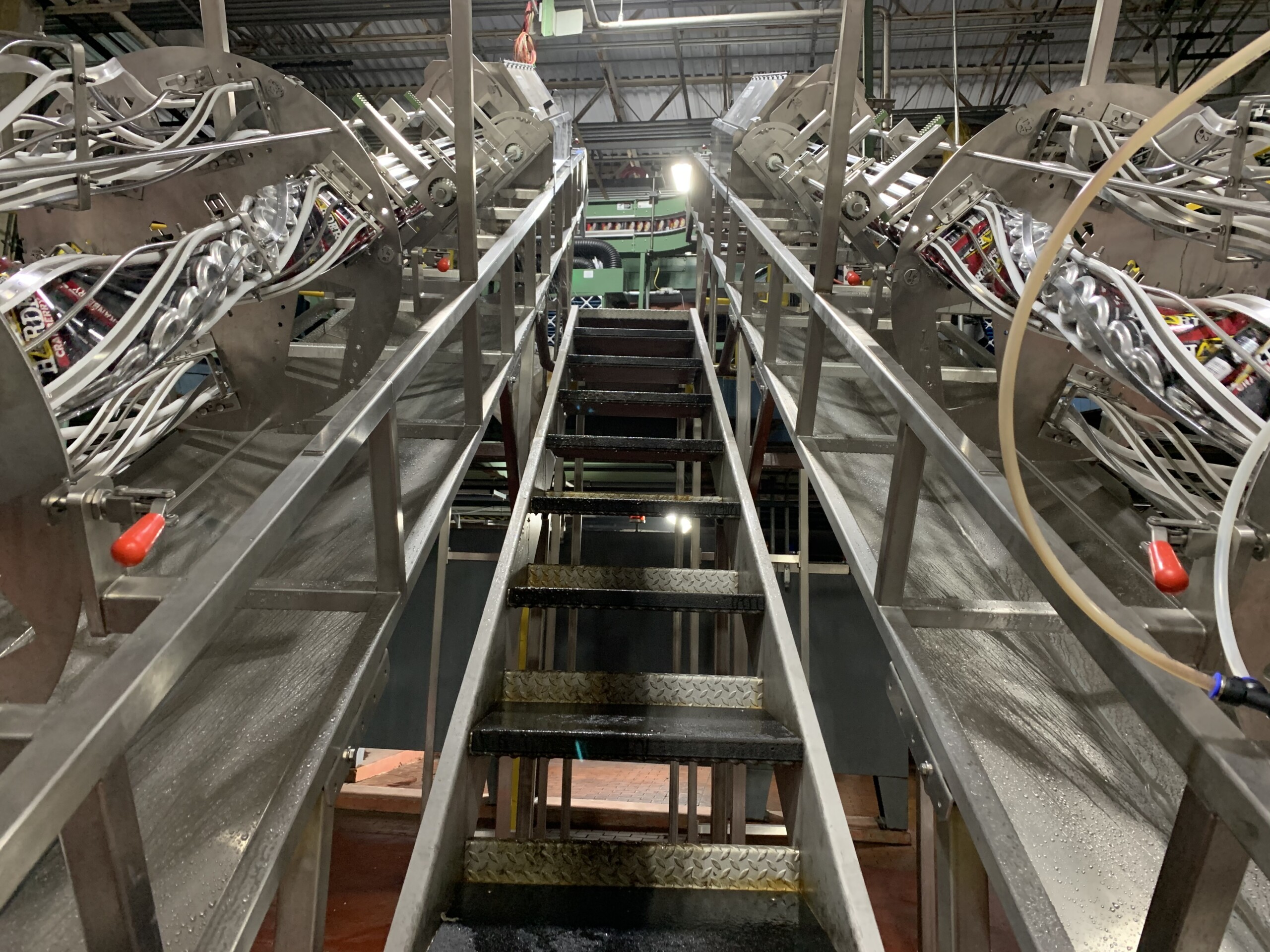

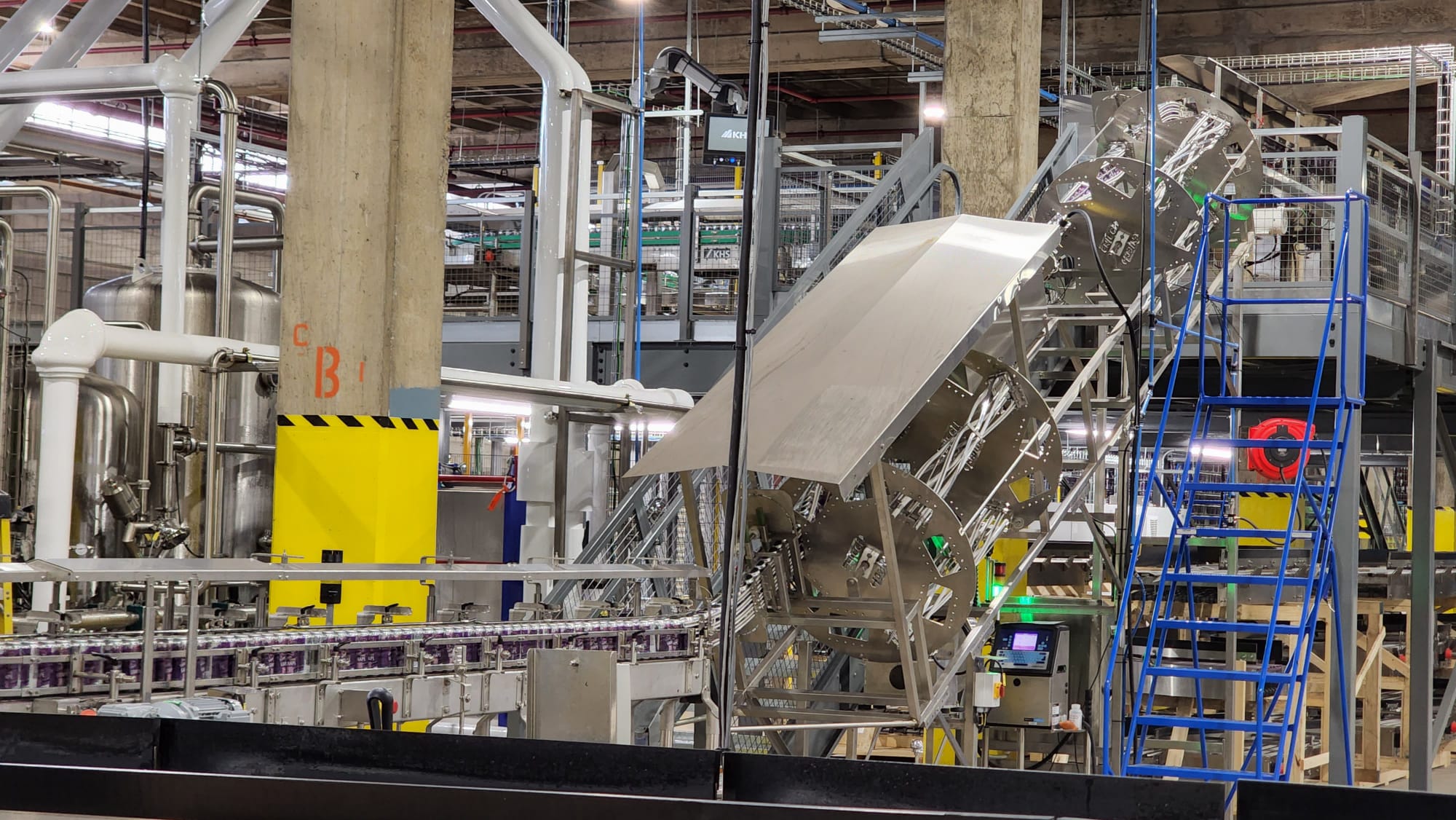

Cans are conveyed through a helical or inclined path that inverts them 180°, allowing internal particles to be removed using ionized air, compressed air, or water. They are then reoriented to the upright position and transferred to the filler.
At Storcan, we integrate these systems to ensure high hygiene standards, optimal product protection, and seamless synchronization with your packaging line

Typical applications

• Cleaning of empty cans: Internal rinsing of containers at the depalletizer discharge to remove dust and contaminants.
• Pre-filling preparation: Inversion and cleaning of cans before the filler to ensure optimal hygiene levels.
• Particle removal: Use of ionized air, compressed air, or water to remove internal residues.
• Container orientation and realignment: Inversion followed by return to upright position for smooth transfer to downstream equipment.
• Integration into beverage packaging lines: Positioned between the depalletizer and the filler, the system ensures continuous can cleaning without impacting production speed.

Key benefits

• Enhanced hygiene and product safety: Effective removal of internal contaminants before filling.
• Rinsing integrated into production flow: Continuous cleaning without the need for a dedicated station.
• Maintains high production speeds: Compatible with modern beverage can production lines.
• Reduced contamination risk: Container inversion promotes natural particle removal through gravity.
• Multi-format flexibility: Adaptable to different can diameters and heights.
• Compact and efficient solution: Small footprint with optional gravity-assisted operation.

Technical specifications

  • Technologies Ionized air, compressed air, or water rinsing with mechanical inversion (twist)
  • Integrated brands Entech Fabrications
  • Frame Sanitary stainless steel construction for wet and washdown environments
  • Throughput PLC / HMI, conveyor synchronization, full line integration
  • Available Options Ionized air, air/water filtration, debris extraction, multi-lane configuration, quick changeover
