Vertical Pallet Elevator / Lowerator

Main function

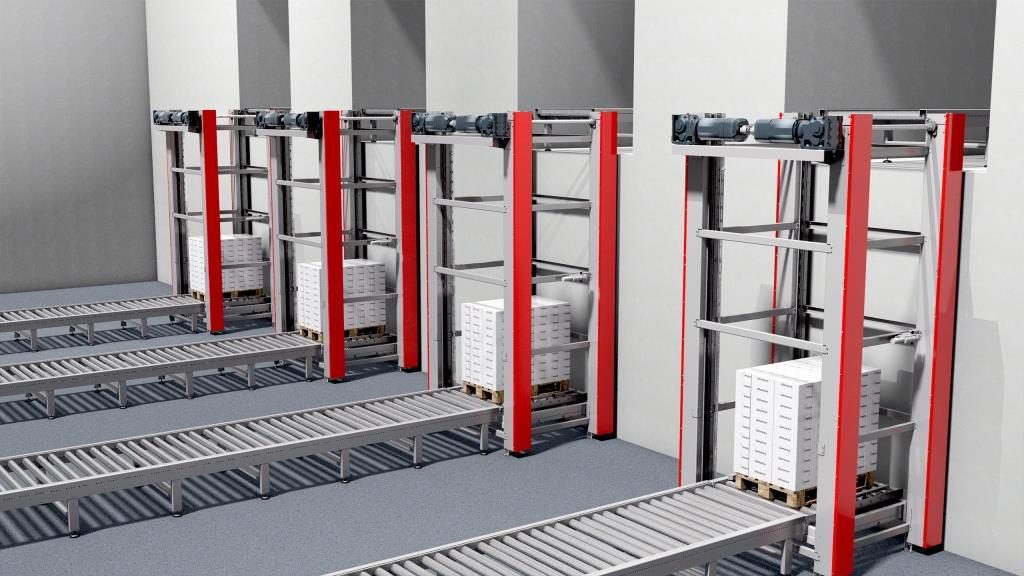

The vertical pallet elevator / lowerator is an automated material handling system designed to transfer pallets from one level to another (upward or downward) within a production, storage, or distribution line.
This type of equipment optimizes vertical space usage, connects different conveyor levels, and manages vertical transitions without requiring manual transfers, forklifts, or long inclined ramps.
Depending on operational requirements, several technical configurations are available: continuous operation, intermittent operation (step-by-step), or systems with accumulation mechanisms adapted for heavy loads.
We currently integrate three Qimarox models into our lines:
· Prorunner MK9: for maximum loads up to 2,760 lb
· Prorunner MK10: for heavier pallets up to 4,400 lb

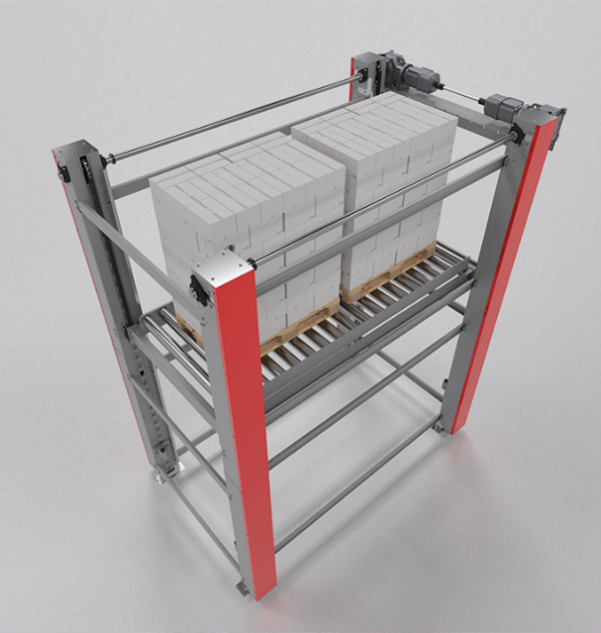

· Prorunner MK10-KL: designed to lift two pallets simultaneously

Typical applications

· Connecting pallet zones within a production cell or warehouse
· Supplying pallets to packaging, elevated storage, or automatic palletizing areas
· Lowering finished pallets toward staging or shipping areas
· Integration with horizontal conveyors, sorting systems, or automated lines
· Multi-level material flows where vertical pallet handling is essential

Key benefits

· Efficient vertical handling of heavy loads: Enables pallet elevation or descent without interrupting product flow, reducing manual handling and machine stoppages. Designed to support full pallets and heavy unit loads typical of industrial facilities.
· Floor space optimization: Frees valuable floor space by replacing inclined conveyors or intermediate buffer zones.
· Enhanced safety and reliability: Robust structure, integrated safety systems, and industrial control standards ensure safe and continuous operation.
· Automated system integration: Compatible with PLC/HMI systems, position sensors, and horizontal conveyor interfaces for seamless line automation.
· Possible configurations:
· Continuous vertical elevator with smooth pallet movement between levels for high-throughput lines
· Intermittent / step-by-step vertical elevator with controlled position movement, suitable for sorting loops or synchronization-critical areas
· Can be integrated as a pallet lift within a palletizing system

Technical specifications

  • Technologies Continuous or intermittent (step-by-step) vertical pallet elevator for heavy load handling
  • Integrated brands Qimarox (Prorunner MK9, MK10, MK10-KL)
  • Frame Heavy-duty industrial steel or stainless steel construction depending on environment
  • Throughput Variable depending on configuration, flow, and operating mode (continuous or indexed)
  • Control & Automation PLC / HMI, level and position sensors, synchronization with conveyors and automated systems
  • Available options Dual pallet handling, multi-level configurations, integration with storage or palletizing systems, safety guarding, sanitary design
