End-of-Line & Palletizing

Empty Pallet Dispenser

Main function

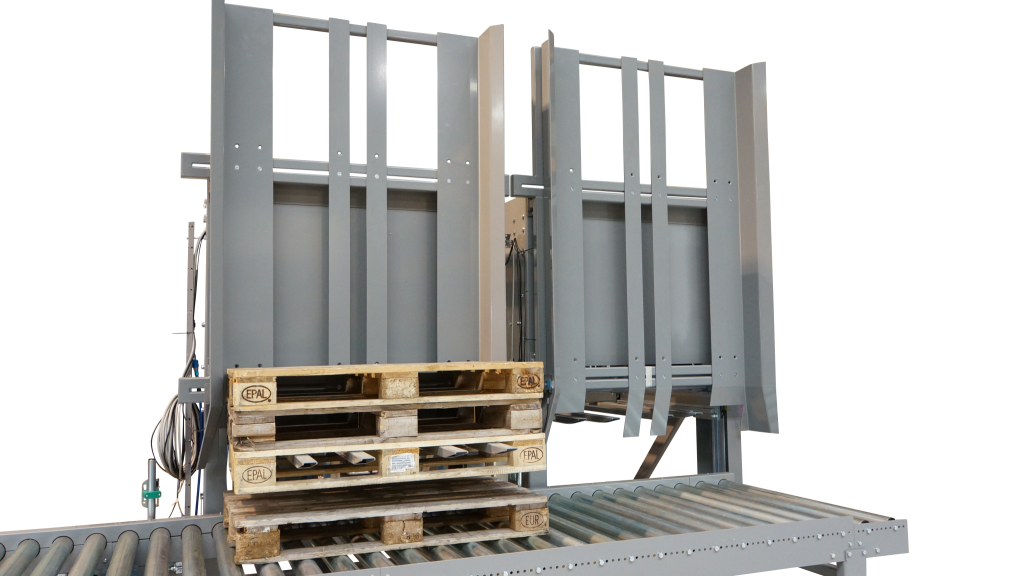

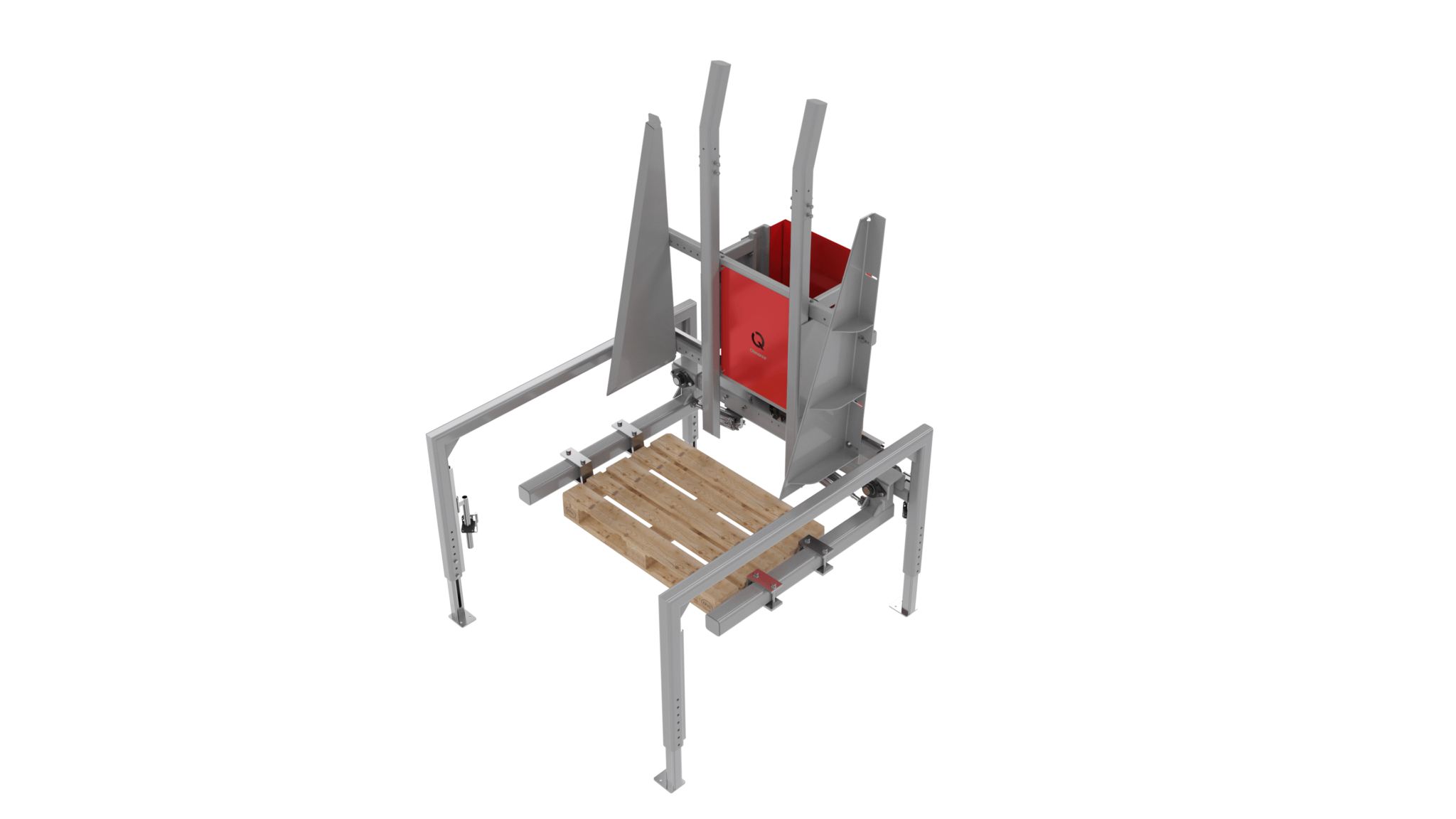

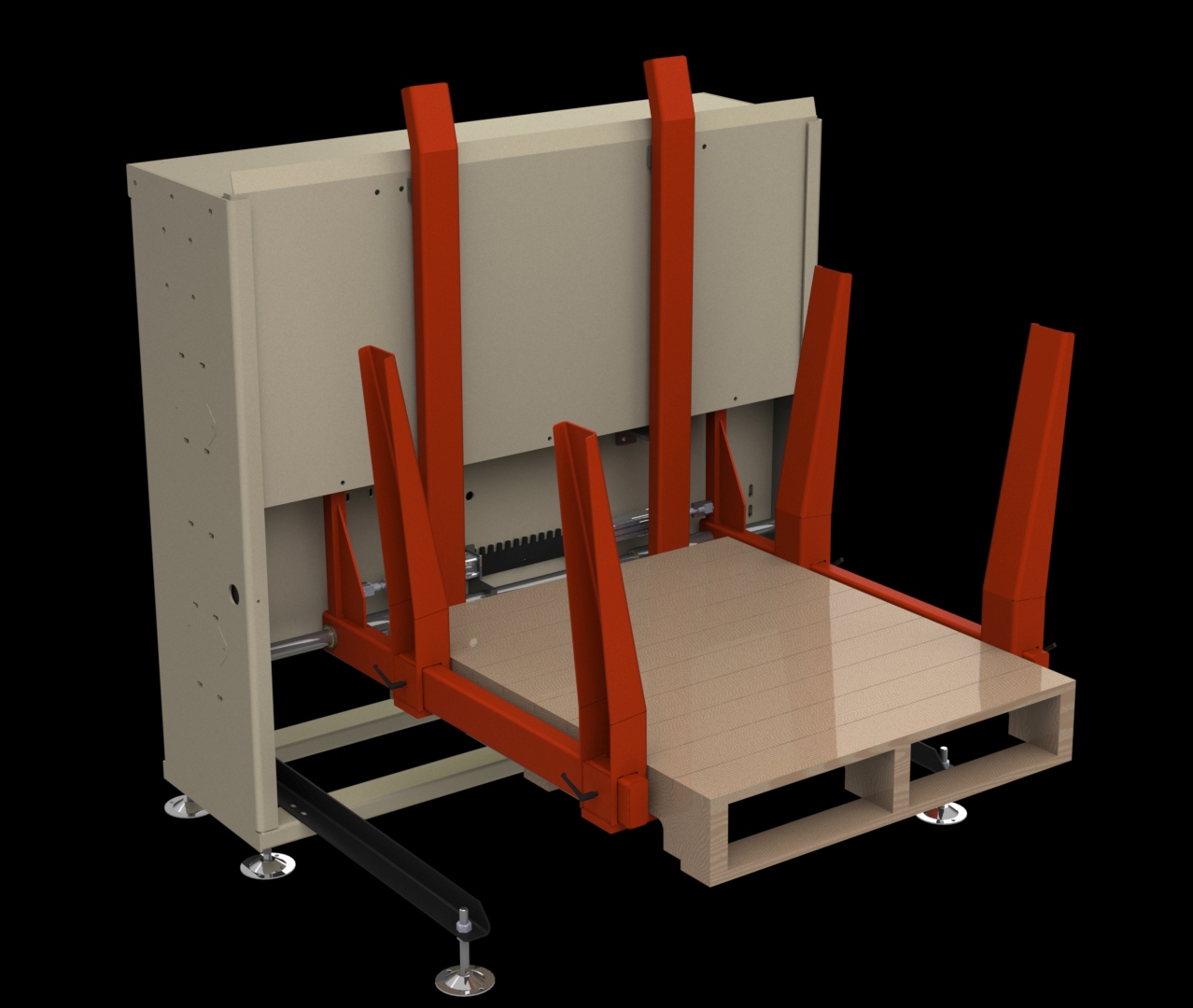

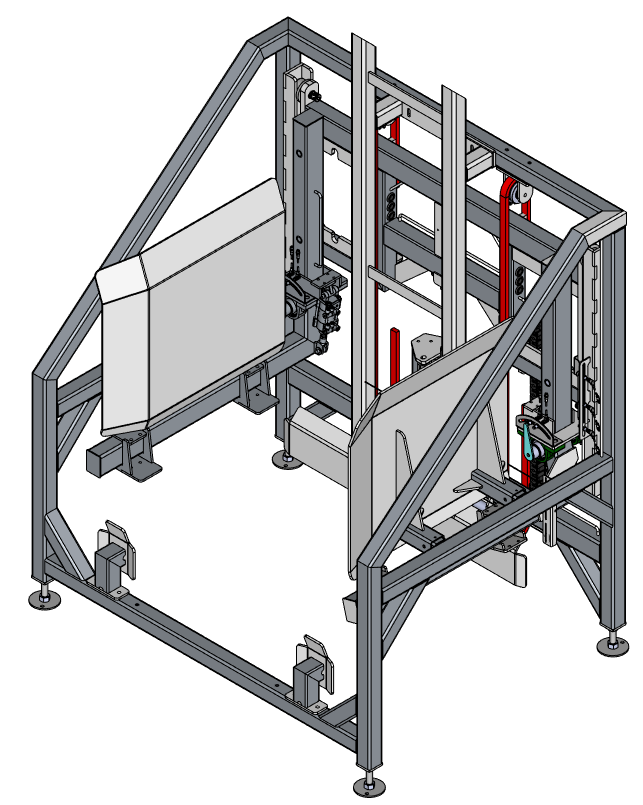

The empty pallet dispenser is an automated material handling system designed to separate, store, and automatically feed empty pallets to a palletizing cell or logistics process.
It performs controlled stacking and destacking of pallets using a pneumatic or electromechanical mechanism, allowing a single pallet to be presented to the line without operator intervention. This type of equipment is designed to handle different pallet formats (wood or plastic, 2-way or 4-way entry) and improves the operational continuity of palletizing systems.

Typical applications

· Automatic feeding of empty pallets to palletizers or robotic palletizers
· Logistics areas requiring pallet separation and distribution
· Automated packaging and end-of-line systems
· Integration with pallet conveyors, pallet elevators, or complete palletizing cells

Key benefits

· Operational continuity of palletizing systems: eliminates production stops caused by pallet shortages
· Automated pallet handling: reduces manual handling and improves workplace safety
· Multi-pallet compatibility: adaptable to different pallet formats, materials, and orientations
· Stacking / destacking functionality: flexible use for automated pallet storage or distribution
· Full line integration: communication with pallet conveyors and logistics modules
· Compact and modular architecture: easy installation in existing palletizing cells

Technical specifications

  • Technologies Automated pallet stacking and destacking using pneumatic or electromechanical mechanisms
  • Integrated brands Qimarox, Jantz, Storcan, etc.
  • Frame Heavy-duty welded industrial frame suitable for logistics and production environments
  • Throughput Varies depending on model and configuration (Up to ~225 pallets/hour)
  • Control & Automation PLC / HMI, presence and position sensors, synchronization with pallet conveyors and palletizers
  • Available options Integrated pallet conveyor, automatic pallet feeding, multi-infeed/outfeed configurations, multi-format capability, safety guarding

Solutions tailored to your operations

Benefit from Storcan’s expertise to design a high-performance, scalable production line.
