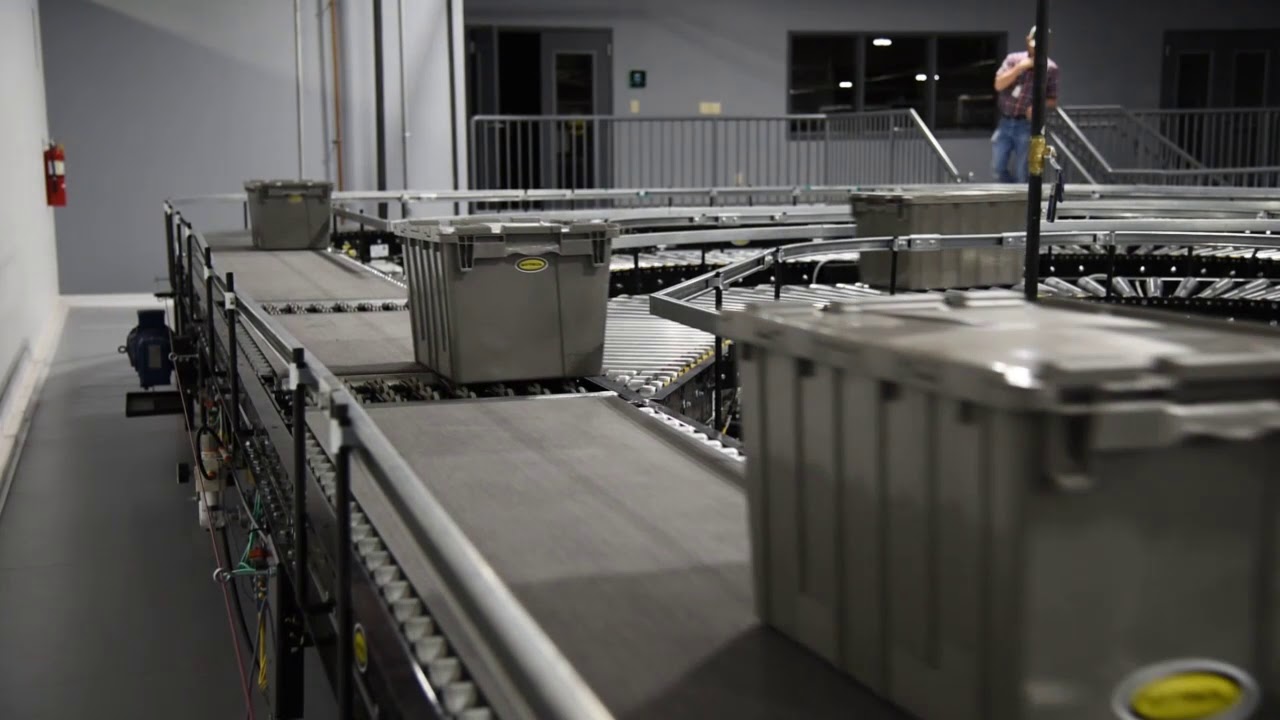

Hytrol ProSort SC Pivot Wheel Sortation Conveyor

Main function

The ProSort SC pivot wheel sortation conveyor is designed to efficiently redirect unit loads to different lanes using motorized pivoting wheels integrated into the conveying surface. When a product reaches a predetermined sort position, the pivot wheel rotates to push the load in a controlled manner toward a chute, side exit, or another predefined path while maintaining the main line throughput.
This technology provides positive and repeatable sorting without the need for external pushers or complex pneumatic systems, enabling flexible integration into automated distribution and end-of-line systems.

Typical applications

· Diverting product flow to different processing or shipping lanes
· Software-controlled product separation based on sorting criteria (identification, weight, code, category)
· Controlled lateral sorting with predictable product trajectory toward bins, secondary conveyors, or consolidation areas
· Multi-lane applications in automated logistics or distribution systems
· Machine interfaces requiring sequential output to multiple destinations
· Conveying unit loads requiring efficient sorting without excessive pressure or unstable product movement

Key benefits

· Positive and controlled sorting: Pivoting wheels ensure precise directional movement of loads without slippage or loss of control, even at high throughput rates.
· Flexible system integration: This technology easily integrates with control systems (PLC/HMI) and can be programmed based on logical criteria such as vision systems, sensors, or product identifiers.
· Simple mechanical design: Without pneumatic systems or external actuators, the SC conveyor provides reduced maintenance and increased robustness while maintaining reliable sorting performance.
· Quiet and efficient operation: The pivot wheel drive system is designed to minimize noise and mechanical stress on both the conveyor structure and the transported products.

Technical specifications

  • Frame Formed painted steel industrial structure designed for logistics and manufacturing environments
  • Belt Rollers with integrated pivot wheels providing smooth and accurate lateral sortation
  • Drive System AC gearmotors dedicated to pivot wheels and conveying zones
  • Components Pivoting wheels, detection sensors, multi-lane sortation modules, side guides, control systems
  • Available Options Multi-lane configurations, adjustable supports, drive variants, intelligent sequencing, PLC / WMS / MES integration
