Modular conveyor for cans and cylindrical containers

Main function

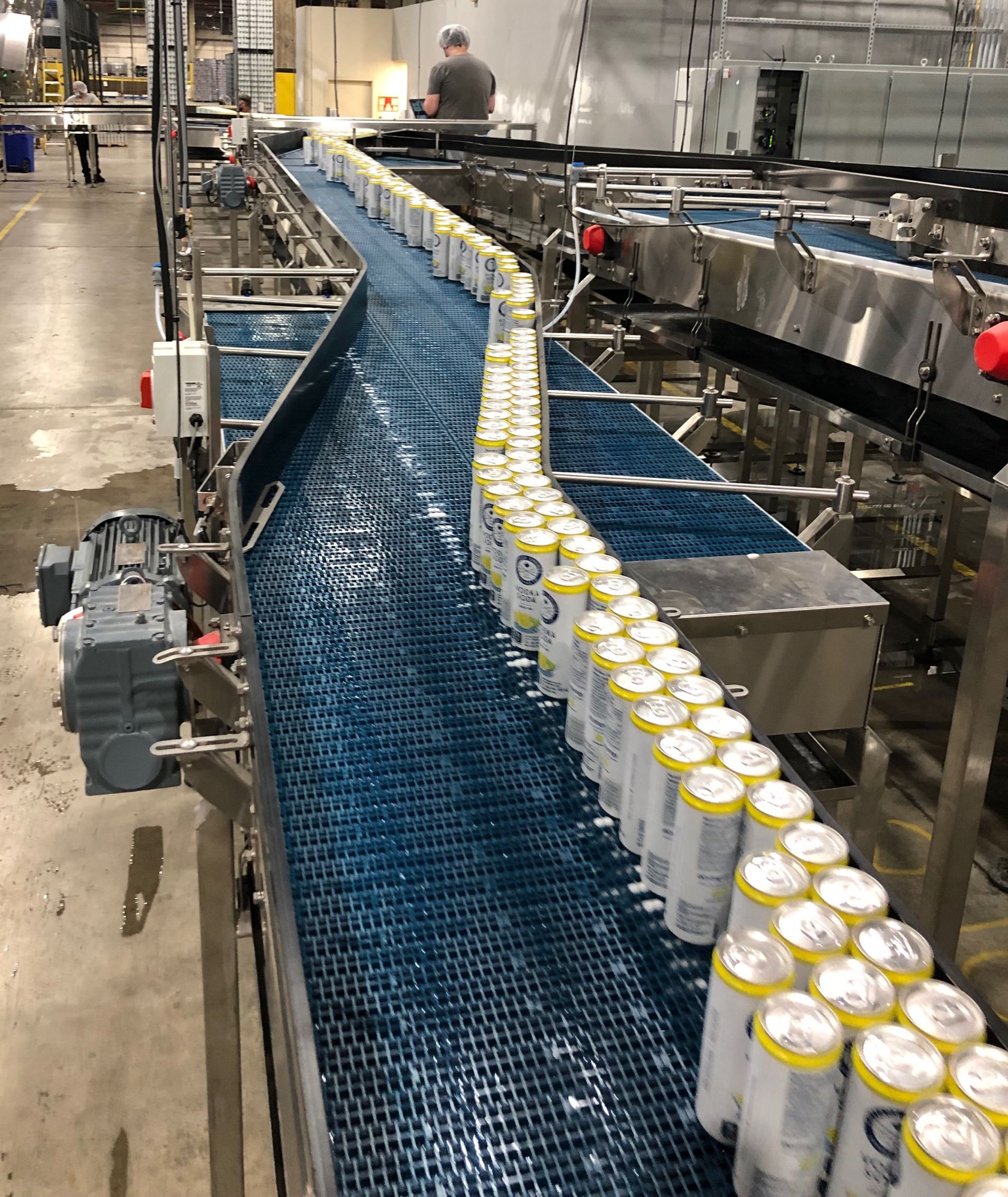

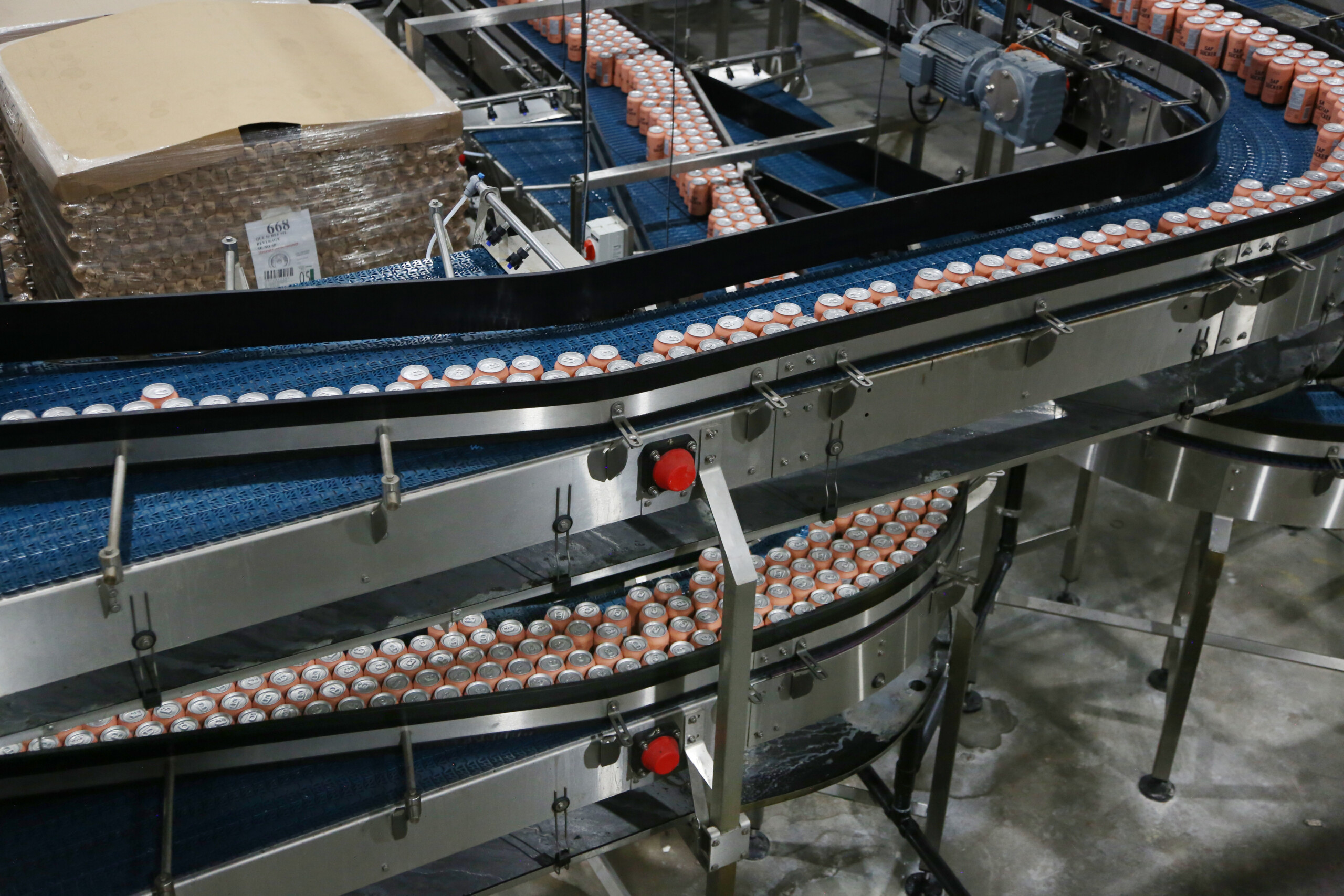

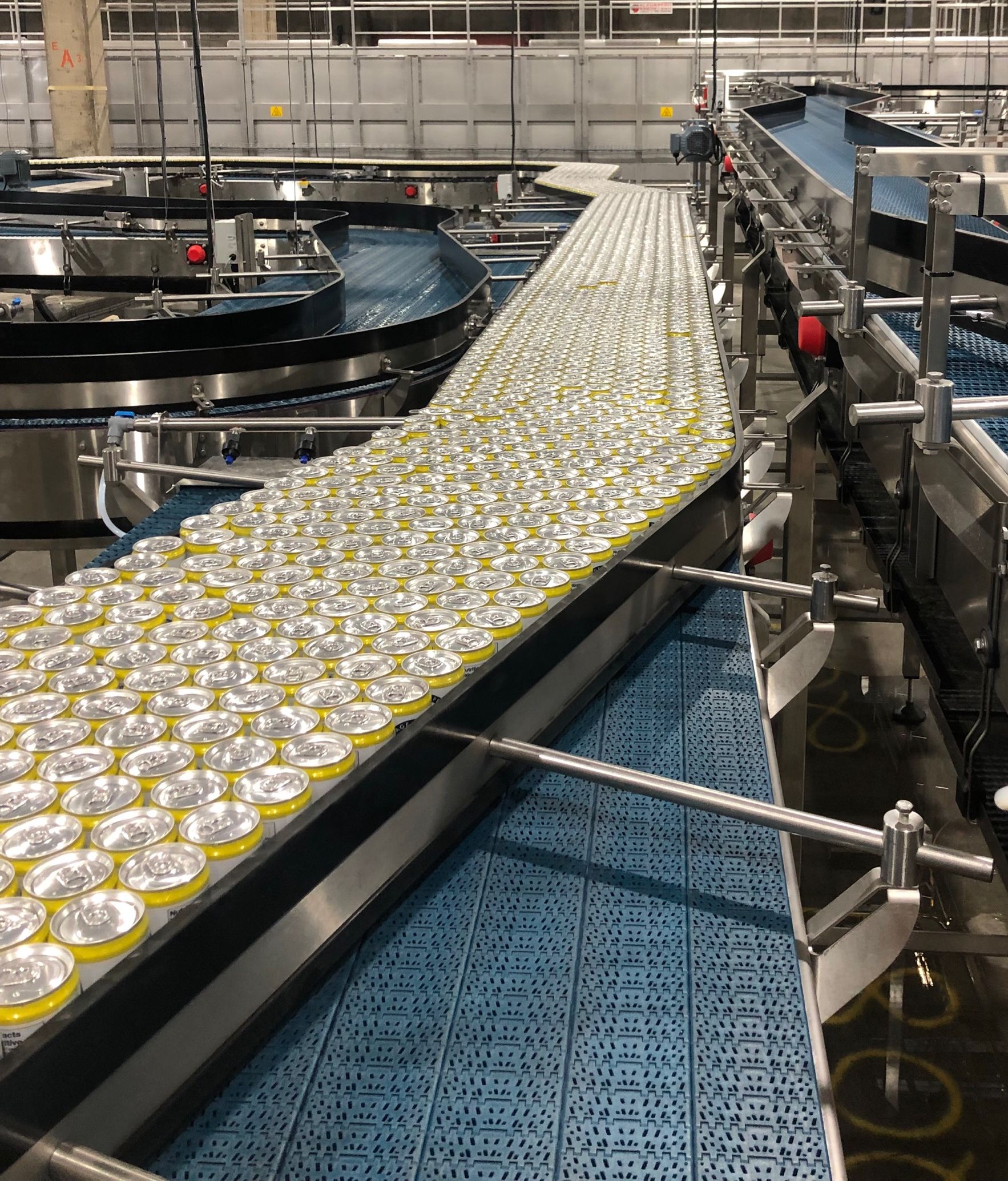

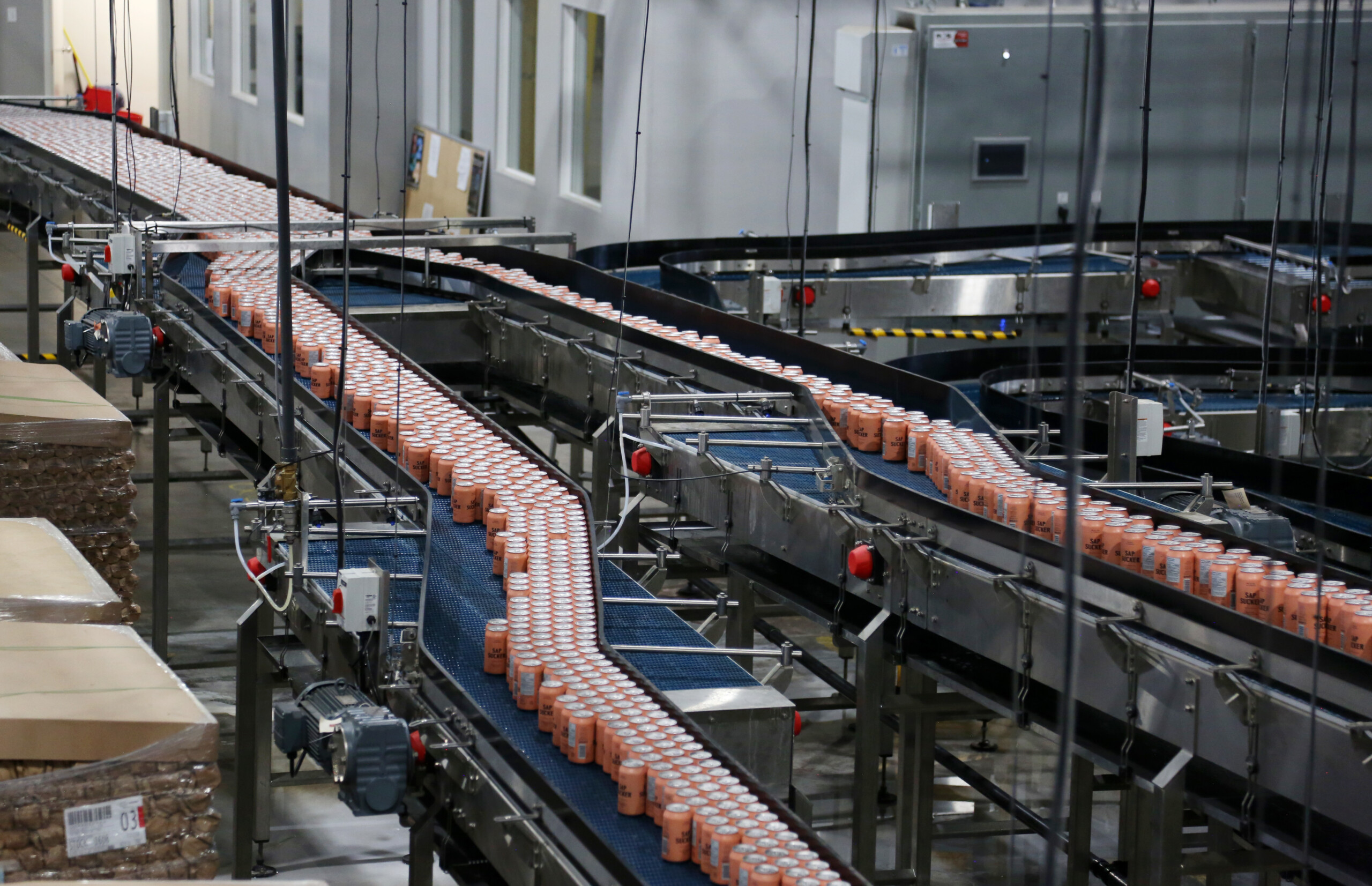

The Mat Top conveyor for cans is an automated conveying system based on a flat modular chain (Mat Top surface), designed to continuously move cans, cylindrical containers, and similar products with stability, consistency, and minimal risk of tipping.
The coplanar Mat Top surface provides uniform product support, which is particularly important for round-bottom objects that may roll or become misaligned on conventional conveyor surfaces.
This conveyor is suited for automated production lines requiring stable can transport, including inspection, filling, capping, labeling, or packaging stages.

Typical applications

· Horizontal or slightly inclined transport of cans and cylindrical containers
· Transfer between filling, labeling, or packaging stations
· Integration into production lines requiring a coplanar surface to prevent can rotation or tipping
· Mass conveying or controlled accumulation of cans, depending on line configuration and speed management
· Sections requiring precise transfers to other conveyors or processing modules

Key benefits

· Flat and stable surface adapted for cans: The Mat Top surface limits unwanted lateral movement and ensures uniform transport of cylindrical products without slipping.
· High throughput and reliability: Designed for automated industrial environments, this conveyor supports high flow rates while maintaining consistent product flow.
· Modularity and flexibility: The modular design allows the conveyor configuration (length, width, accessories integration) to be easily adapted to specific production line requirements.
· Simplified maintenance: Mat Top modules are easily replaceable, enabling quick maintenance and reducing downtime.
· Multi-technology integration: Can be combined with accumulation systems, transfers, sorting zones, or automated interfaces for complex production lines.

Technical specifications

  • Frame Stainless steel 304 structure with adjustable tubular supports, suitable for industrial and food environments
  • Belt Modular Micro Pitch Mat Top chain (flat coplanar surface) ensuring stability of cylindrical containers
  • Drive System Industrial gearmotor (Sew Eurodrive or Keltech) with appropriate protection (up to IP69K)
  • Components Sealed bearings, standard shafts, adjustable or fixed side guides, sensors
  • Available Options Accumulation, high-speed flow management, precision transfers, multi-lane configurations, integration with filling / labeling / inspection systems
