Pallet Turntable

Main function

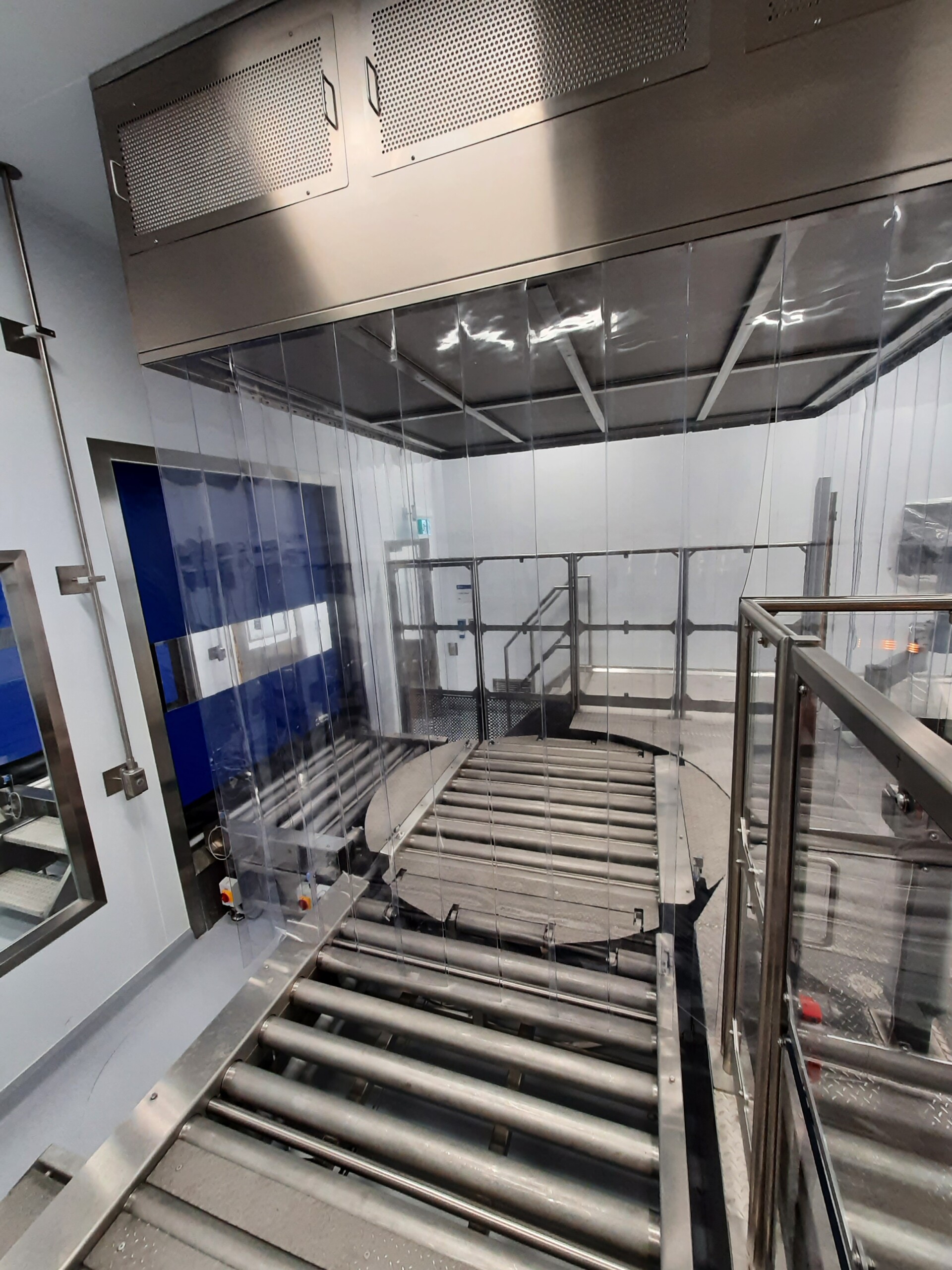

The pallet turntable is a motorized material handling system designed to rotate heavy unit loads in a controlled manner in order to change their orientation or transfer a pallet between conveyors arranged along different axes.

It ensures smooth and precise pallet rotation while maintaining load stability, facilitating directional changes, conveyor line crossings, or alignment prior to logistics operations such as stretch wrapping, inspection, or storage.



Typical applications

· Direction changes between pallet conveyors
· Pallet alignment prior to stretch wrapping or labeling
· Crossing points between pallet conveyor lines
· Pallet orientation reversal for logistics operations
· Transfer zones requiring product orientation control

Key benefits

• Precise rotation of heavy loads: Controlled orientation without lateral pallet movement.
• Maintains product orientation: Ideal for line crossings and directional changes.
• Seamless integration with conveyor systems: Compatible with roller or chain conveyors.
• Indexing flexibility: Programmable rotations (90°, 180°, 270°, or 360°) based on your needs.
• Load stability and safety: Smooth handling reduces the risk of shifting or falling products.
• Robust industrial design: Reliable equipment built for demanding environments.
• Space optimization: Compact solution ideal for constrained logistics areas.

Technical specifications

  • Frame Painted steel or stainless steel structure depending on environment, designed for heavy-duty loads
  • Belt Rotating platform with integrated rollers or surface adapted for pallet conveying
  • Drive System Gear motor (SEW Eurodrive, Keltech or equivalent) with rotation control
  • Components Rotating platform, rollers or chains, indexing systems, position sensors
  • Available Options Indexed rotation (90°, 180°, 270°), continuous 360° rotation, position control, integration with roller or chain conveyors
